FPV Goggles

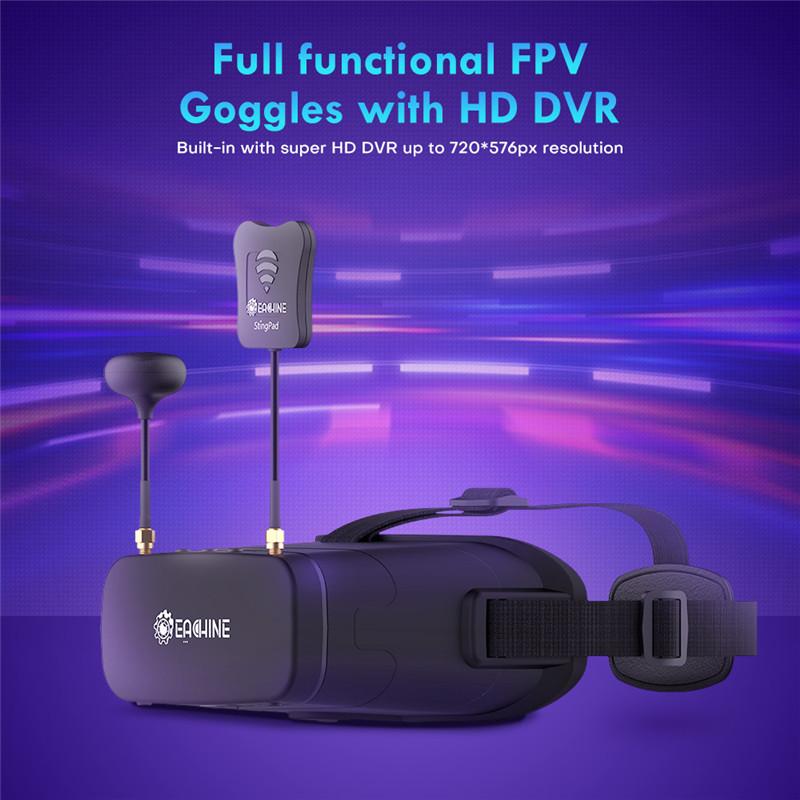

Our FPV Goggles are built-in with very HD DVR up to 720*576px resolution. They have a two system (Display/recor d duo core separated chipsets ) ensure no delay in displaying and no frame lost in recor ding(please use C10 very speed card to ensure the full frame recor ding)

MORE FEATURES:

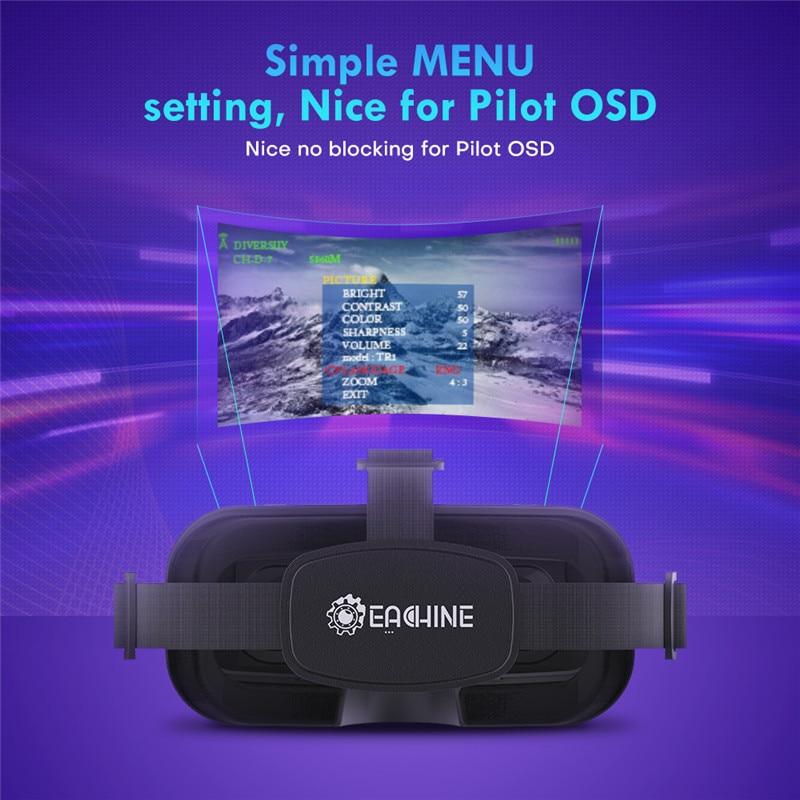

  • Work friendly with player-OSD, no block on the important flying OSD information.
  • Focal length adjustable design;Room for eyeglasses.
  • HD high brightness 3 inch LCD specially tuned for FPV racing;
  • Diversity function, Built-in very sensitive 5.8GHz 40ch receiver module, with RaceRand.
  • Advanced auto-searching function and the working frequency show on screen;
  • Built-in 3.8V 2000mAh battery, each full charge offer 2.2 hours working time;
  • Wide scope re-charge voltage 5-180V;
  • Accept 2S or 3S batteries as back-up po wer source, to prolong the working time;
  • Nice ergonomic design and fit different faces;
  • very-wide visible angle up to 82 degree;
  • 92% transparent lens adopted, no distort, no blur on the edge of screen;
  • Light weight 320g with 2.2 hr 2000mAh battery, RTF for any scale racing game;
  • 3 Inch 900*600px HD high brightness LCD

rB9kfV2IozyAW_CfAAO2k-YvF7E134rB9kfl2IozWAUfBTAANjddRiOgg028rB9kfV2IozyAbG7PAANmz7rWWRY818rB9kfl2IozWAXoL2AAPkdycJh0Y602


Appearance 		Dimension: 150*170*80mm
Weight: 320g without antenna
Belt : three-way adjustable belt


Specification 		Build in DVR
recor d up to 720*576px full frame rate video, no frame lost (C10 card required)
Re play in MENU
Require C10 card to recor d full frame rate

Diversity 		-90dB very sensitiveness in 2pcs RX5808 PRO modules
Great performance when two types (Linear and Omni) antennas are used


Display 		Screen size: 3.0 inch
Screen resolution: 900*600(No blur after enlarge by the lens)
Screen brightness: 600cd/m2 with special high brightness backlight LED for outdoor FPV
Ratio : 4:3
View Angle: 140/120 degree(Horizontal/Vertical)

Lens 		3x boost of the video to acquire intense feel-in-there video;
92% transparent rate distort if light;

Varifocal 		20mm focal length adjustable;
Multi stop points design for vertical individual user adjust;
For more users with different eyesight

Glasses Fit 		Fit for wear with glasses;
Glasses Fit Size; 140mm*40mm;
Focal length need to be reset when wear glasses



Battery 		Built-in 3.8V/2000mAh battery;
Each battery circle offer around 2.2hr working time;
5-18V wide scope recharging voltage scope, typical recharging with 5V/2A
Charger : 5V, 2A, DC 2.5mm
2S (7.4 V) /3S(11.1V) battery as back-up po wer t to have long working time.

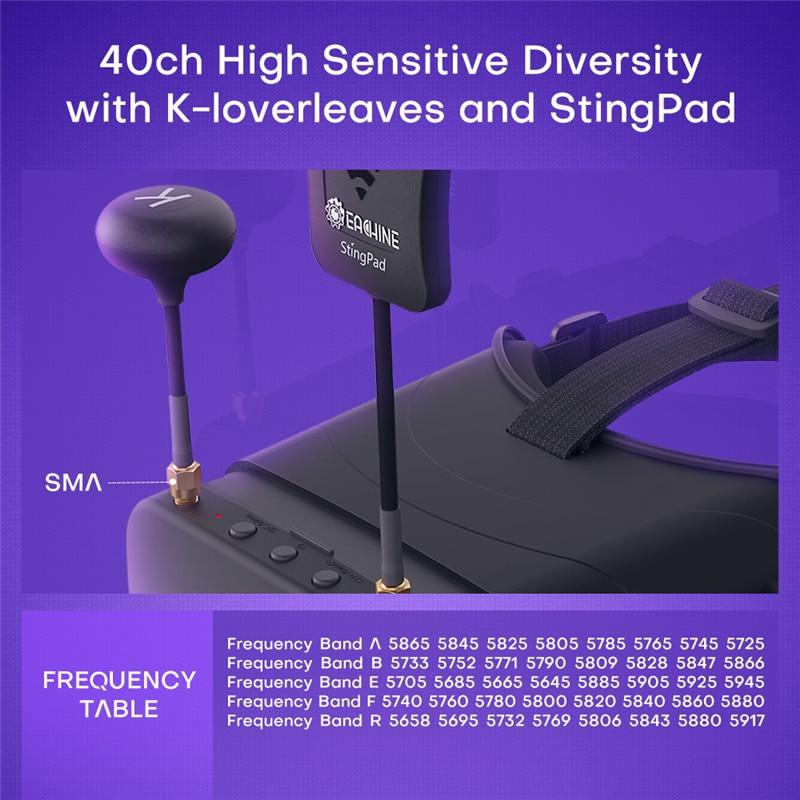

Frequencies (5.8GHz, with RaceBand)

CH CH 1 CH 2 CH 3 CH 4 CH 5 CH 6 CH 7 CH 8
GROUP
A or FR1 5865 MHZ 5845 MHZ 5825 MHZ 5805 MHZ 5785 MHZ 5765 MHZ 5745 MHZ 5725 MHZ
B or FR2 5733 MHZ 5752 MHZ 5771 MHZ 5790 MHZ 5809 MHZ 5828 MHZ 5847 MHZ 5866 MHZ
C or FR3 5705 MHZ 5685 MHZ 5665 MHZ 5645 MHZ 5885 MHZ 5905 MHZ 5925 MHZ 5945 MHZ
D or FR4 5740 MHZ 5760 MHZ 5780 MHZ 5800 MHZ 5820 MHZ 5840 MHZ 5860 MHZ 5880 MHZ
R or FR5 5658 MHZ 5695 MHZ 5732 MHZ 5769 MHZ 5806 MHZ 5843 MHZ 5880 MHZ 5917 MHZ
